Schedule 40 & 80

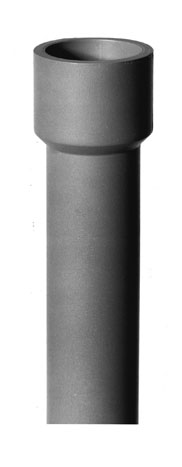

Schedule 40 Conduit & Elbows

	PVC Rigid Nonmetallic Conduit (Heavy Wall EPC)
	Listed for underground applications encased in concrete or direct burial.
	Also for use in exposed or concealed applications aboveground.
	Rated for use with 90°C conductors
	490* Series
	2” – 8” Standard Radius and Special Radius Elbows available.

RUS Accepted
NEMA TC-2
Federal Spec. WC1094A
NEC 352

Schedule 80 Conduit & Elbows

	PVC Rigid Nonmetallic Conduit (Extra Heavy Wall EPC-80)
	Listed for use in aboveground and belowground applications including areas subject to physical damage.
	Rated for use with 90°C conductors
	Superior weathering characteristics
	Identified for use in areas subject to physical damage in accordance to 352.12(C)
	494* Series
	2” – 6 ” Standard Radius and Special Radius Elbows available.

RUS Accepted
NEMA TC-2
Federal Spec. WC1094A
NEC 352

Schedule 40 Conduit & Elbows

	PVC Rigid Nonmetallic Conduit (Heavy Wall EPC)
	Meets CSA Standard C22.2 No. 211.2
	Certified for underground applications encased in concrete or direct burial.
	Also for use in exposed or concealed applications aboveground.
	Rated for use with 75°C conductors
	490*CC Series
	2” – 6” Standard Radius Elbows available.

Schedule 40 Utility Conduit & elbows
	Heavy Wall
	Rated for 90°C conductors or cable
	For direct earth burial and concrete encasement, specifically designed for power utility specifications
	596* Series
	2” – 8” Elbows available

Longer Bell Depth Specifications
